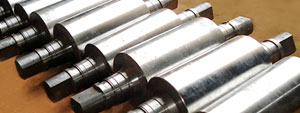

Indefinite Chill Cast Iron Rolls (ICCI)

We also Produce ICCI Rolls by sand casting technology. The hardness of these rolls varies from 55-80 shore harness. These are cast iron based rolls alloyed with Nickel, Chromium and Molybdenum having a matrix of pearlite and carbide with flake graphite. The material has very good thermal properties coupled with property of imparting good surface finish to the products.

Chemical Composition
Hardness C Mn Si P S Ni Cr Mo
65-70 3.00/3.20 0.60/0.80 1.80/1.60 0.11/ MAX 0.11/ MAX 1.50/2.70 0.80/1.20 0.25/0.40
70-75 3.00/3.20 0.60/0.90 1.00/1.60 0.11/ MAX 0.11/ MAX 2.00/3.00 0.80/1.20 0.25/0.40
75-80 3.20/3.50 0.60/0.90 0.70/1.10 0.10 MAX 0.050 MAX 4.00/ 4.50 1.60/1.90 0.25/0.40
